NEW Sto Fireblocking Solution to Meet 2022 New York City Building Code
StoPanel MVES ci
StoPanel® MVES ci is an engineered insulating wall system with Adhered Masonry Veneer (AMV) – thin brick, natural stone, ceramic tile, or cultured stone. It combines superior air and weather tightness with excellent thermal performance and durability. It incorporates continuous exterior insulation and StoGuard Air and Water-resistive Barrier (AWRB) with Sto high strength masonry veneer adhesive.
Details
Accessory Products
*Refer to Product Bulletin for specific information on the proper use, handling, application and limitations of StoSeal STPE Sealant.

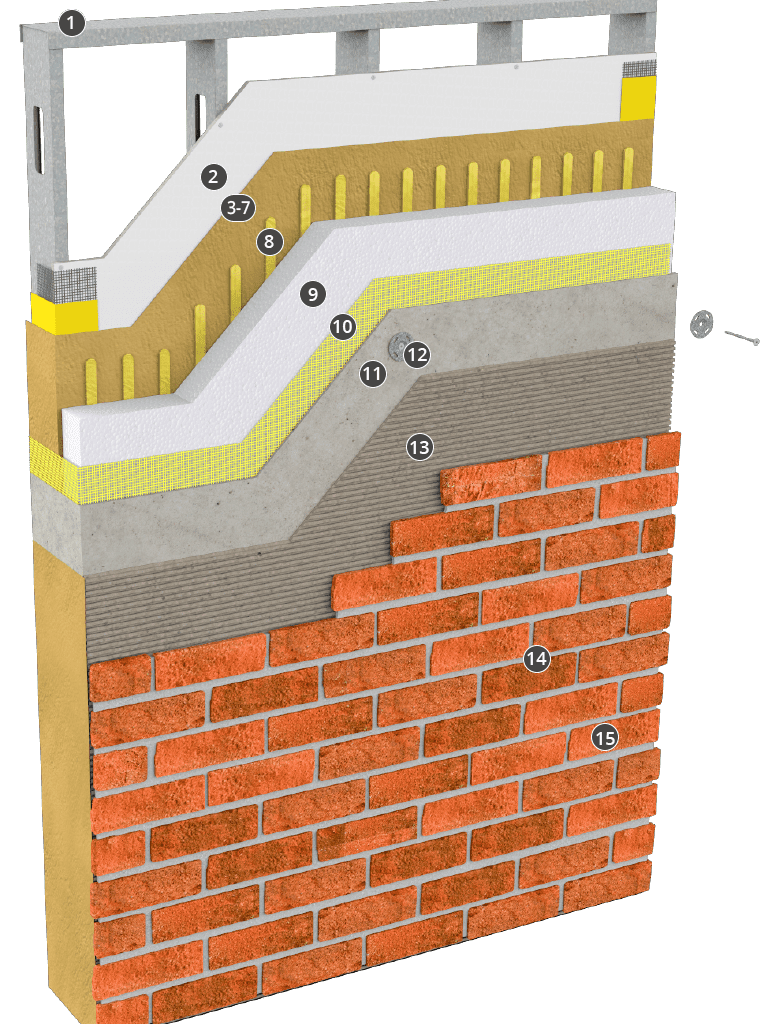

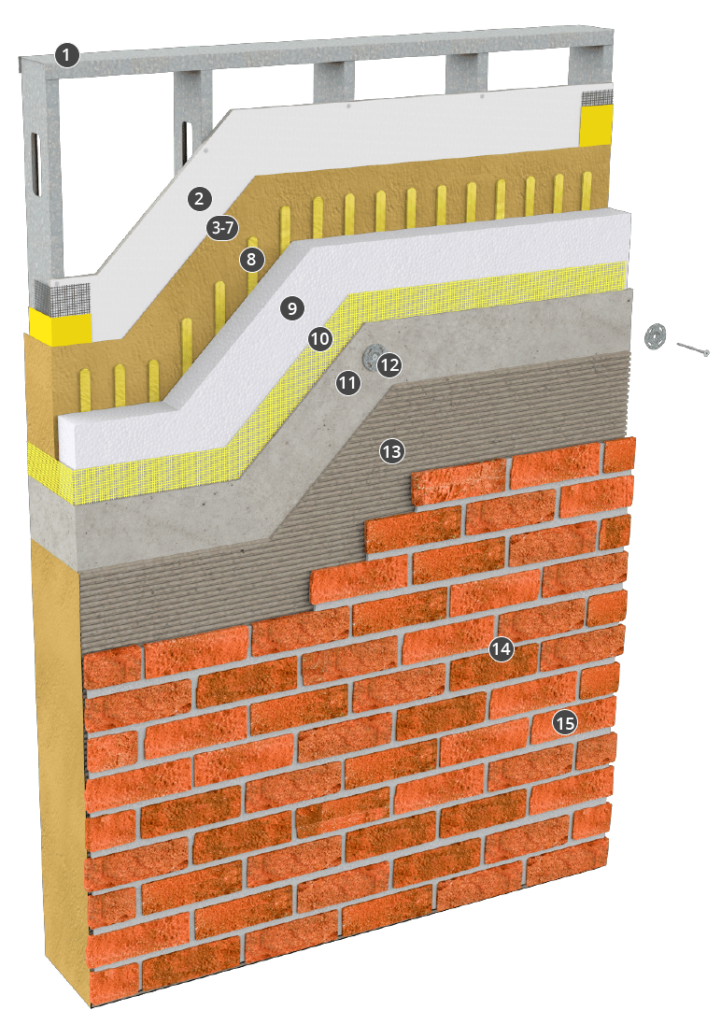

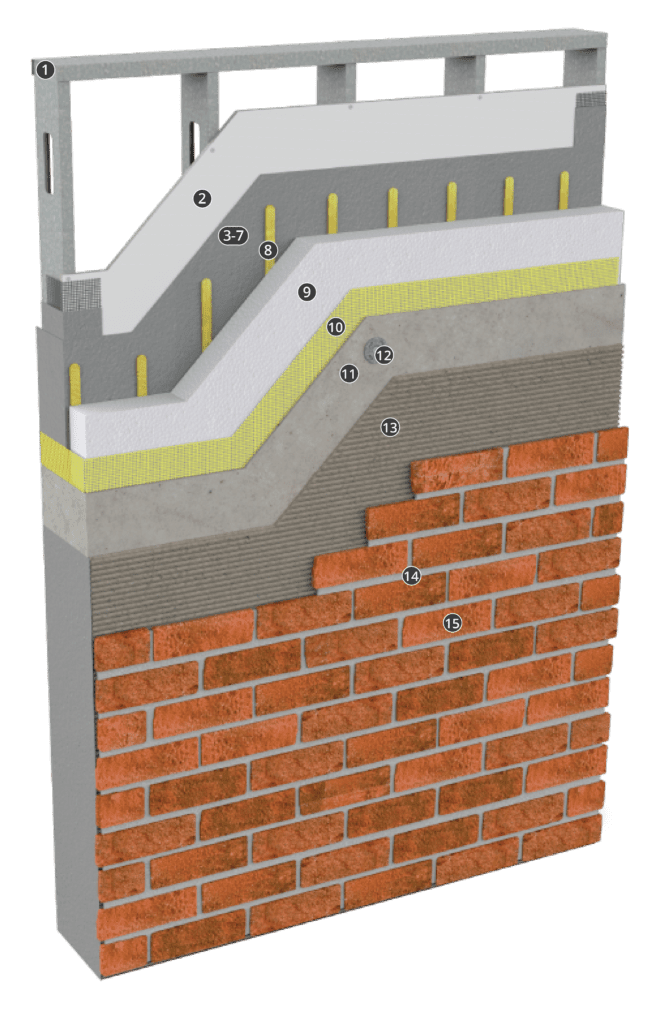

System information:
1
Frame: Steel
2
Sheathing: Glass Mat Gypsum
5
StoGuard Detail Component - Flashing and Penetration Transitions: Sto RapidGuard®
6
StoGuard Detail Component - Rough Openings and Panel Edge Treatment: Sto RapidGuard®
7
StoGuard Detail Component - Dynamic Joints for StoPanel Back-up: StoGuard Conformable Membrane
12
Lath Plate with Fastener
14
Grout: Masonry Veneer Grout
