StoTherm ci HI-LM 180
StoTherm® ci HI-LM 180 is a high-performance, energy efficient, continuous insulation wall cladding that integrates several proven components – StoGuard®, air and water-resistive barrier, and StoTherm® insulated cladding and drainage capabilities over concrete masonry substrates. StoTherm® ci HI-LM 180 is engineered to meet the testing requirements for large and small missile impacts.
Downloads
Specifications
Code & Test Reports

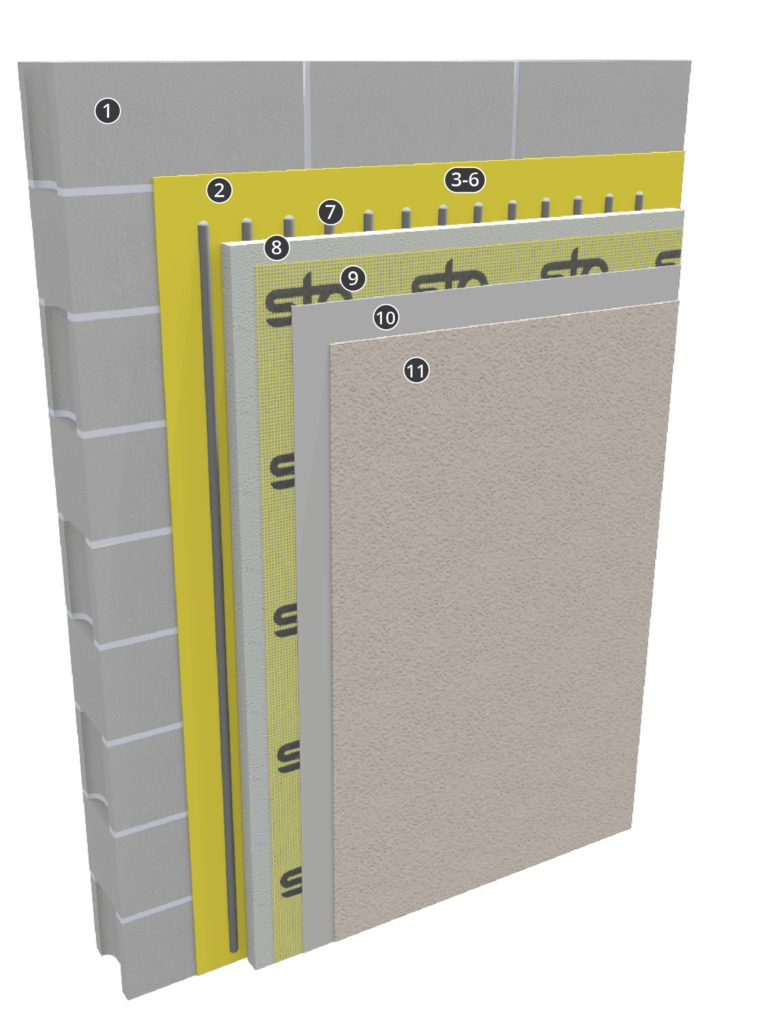

System Component Drawing:
System information:
1
Masonry Frame (min. 8" hollow core block)
2
Air and Water-Resistive Barrier - Wall Membrane: Sto Gold Coat – Substrate Driven
Alternative: Sto Gold Coat – Medium-Build
Alternative: Sto Gold Coat – High Build
Alternative: Sto Gold Coat TA
3
StoGuard Detail Component - Sheathing Joints : Sto RapidGuard®
Alternative: Sto Gold Fill with StoGuard Mesh
PDF
Alternative: Sto Air and Water-resisitive Barrier with: StoGuard Fabric 9
Alternative: Sto Gold Coat TA with StoGuard Mesh
PDF
4
StoGuard Detail Component - Rough Opening Protection: Sto RapidGuard®
Alternative: Sto Gold Fill with StoGuard Mesh
PDF
Alternative: Sto Air and Water-resisitive Barrier with: StoGuard Fabric 9
Alternative: Sto Gold Coat TA with StoGuard Mesh
PDF
5
StoGuard Detail Component - Penetrations: Sto RapidGuard®
Alternative: Sto Gold Fill with StoGuard Mesh
PDF
Alternative: Sto Air and Water-resisitive Barrier with: StoGuard Fabric 9
Alternative: Sto Gold Coat TA with StoGuard Mesh
PDF
6
StoGuard Detail Component - Movement Joints and Substrate Transitions: StoGuard Conformable Membrane
8
Insulation: Miami-Dade County Listed EPS, 1.0 pcf, Minimum 1½-inch Thick
10
Basecoat: Sto Primer/Adhesive-B
Alternative: Sto Flexyl
Alternative: Sto Watertight Coat White
Alternative: Sto Watertight Coat Grey
11
Finish: Stolit Lotusan 1.0
Alternative: Stolit Lotusan 1.0 Dark Colors
Alternative: Stolit Lotusan 1.5
Alternative: Stolit Lotusan 1.5 Dark Colors
Alternative: Stolit Lotusan Freeform
Alternative: Stolit Lotusan Freeform Dark Colors
Alternative: Stolit® HDP® 1.0
Alternative: Stolit® HDP® 1.5
Alternative: Stolit® HDP® R1.5
Alternative: Stolit® HDP® Freeform
Alternative: Stolit .75
Alternative: Stolit 1.0
Alternative: Stolit 1.0 Dark Colors
Alternative: Stolit 1.5
Alternative: Stolit 1.5 Dark Colors
Alternative: Stolit R1.5
Alternative: Stolit R1.5 Dark Colors
Alternative: Stolit Freeform
Alternative: Stolit Freeform Dark Colors
Alternative: Sto Essence Fine Sand Finish
Alternative: Sto Essence Medium Sand Finish
Alternative: Sto Essence Swirl Finish
Alternative: Stolit Milano
Alternative: Sto GraniTex
Alternative: Sto Decocoat
Alternative: StoCreativ Granite
Alternative: StoCreativ Lux
Alternative: StoColor Metallic Top Coat
Alternative: StoCast Brick
Bulletin
PDF
Alternative: StoCast Wood
Bulletin
PDF
Alternative: StoColor Acryl Flat
Alternative: StoColor Acryl Plus – Eggshell
Alternative: StoColor Coat
Alternative: StoColor Coat Sand
Alternative: StoColor Dryonic
Alternative: StoColor Lastic
Alternative: StoColor Lotusan
Alternative: StoColor Silcolastic
Alternative: StoColor Wood Stain Gloss
Alternative: StoColor Texture Fine
Alternative: StoColor Texture Medium
Alternative: StoColor Texture Coarse
Alternative: Stolit X Freeform
Alternative: Stolit X Swirl
Alternative: Stolit X Fine
Alternative: Stolit X Medium

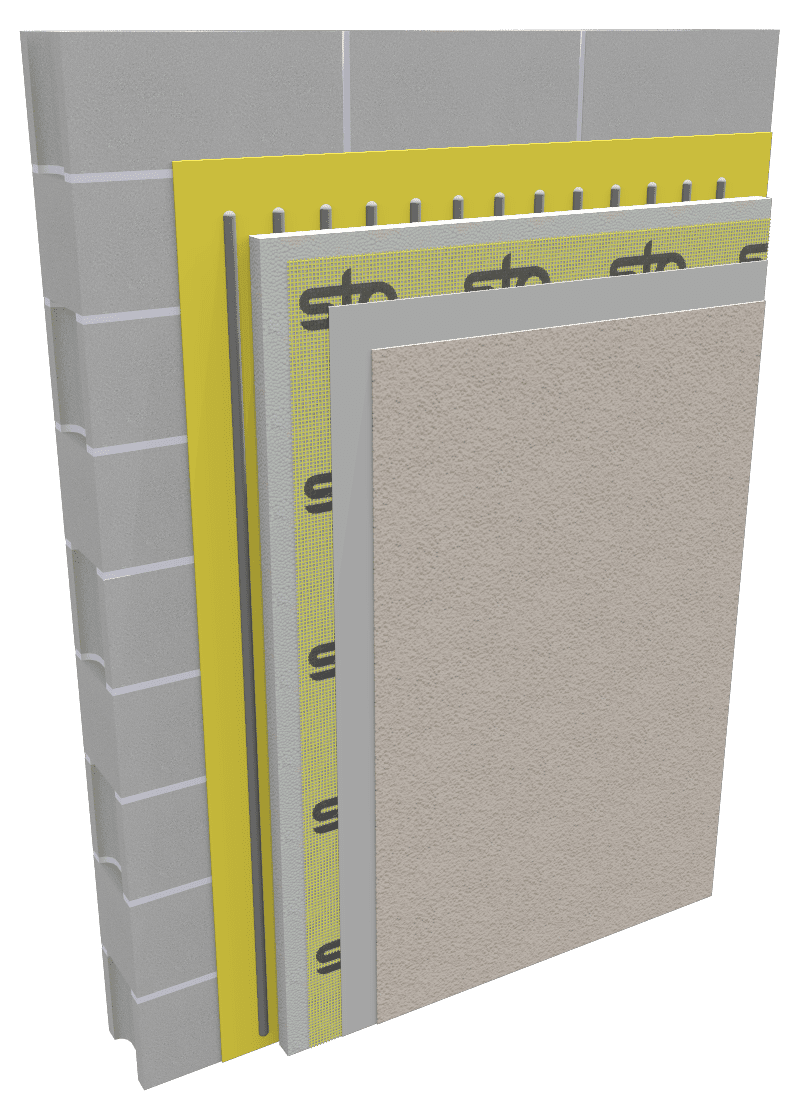

Hurricane Impact - 10H.13
10H.xx
Sto Hurricane Impact (HI) Systems provide a full range of exterior cladding options to protect against hurricane and tropical storm winds, water intrusion, and windborne debris, a major cause of building envelope failure. This system meets Miami-Dade County, Florida criteria for impact resistance, air and water infiltration, and wind load resistance.
